OSK™ DIN 3869 Fluid Connector / Profile Seal O-Ring Kit 15 Sizes 300pc
OSK™ DIN 3869 Fluid Connector / Profile Seal O-Ring Kit 15 Sizes 300pc
Couldn't load pickup availability

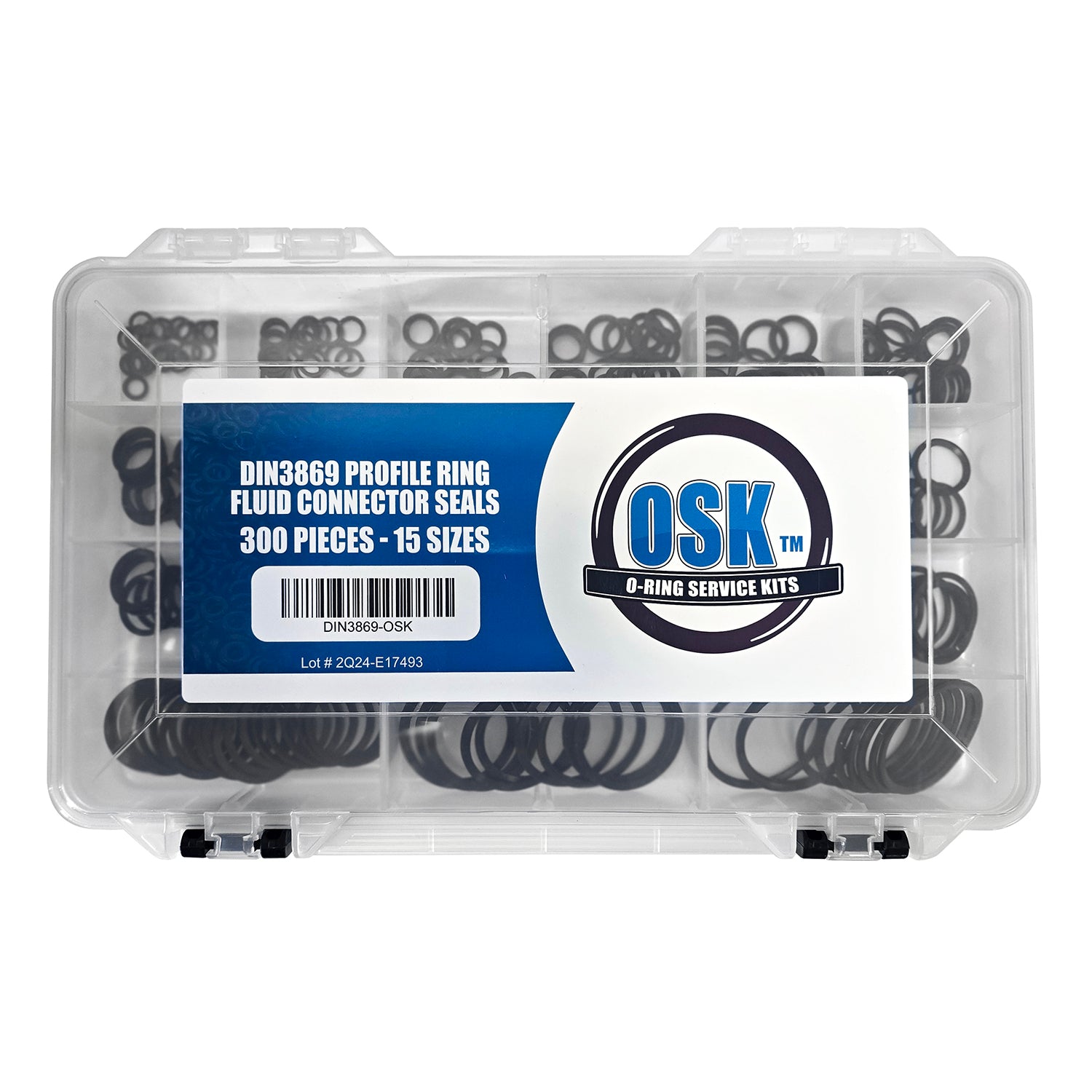

Introducing the OSK™ DIN 3869 Fluid Connector / Profile Seal O-Ring Kit, a comprehensive 300-piece set featuring 15 of the most popular sizes. Designed for optimal sealing in static applications, these seals are crafted from high-quality 85 Shore A nitrile (NBR), offering superior performance and a long service life without twisting in the groove.
Key Features:
- Material: 85 Shore A nitrile (NBR) for durability and excellent sealing performance.
- Design: Engineered for static applications, ensuring no twisting in the groove.
- Temperature Range: Operates effectively from -20°F to +220°F.
- Comprehensive Kit: Includes 15 commonly used sizes, providing versatility and convenience.
DIN 3869 Sealing Advantages:
DIN 3869 seals are designed for axial static applications in combination with threaded elements. These seals are commonly used in construction machinery, hydraulic presses, injection machines, fittings, hydraulic valves, and threaded tube connections across various industries.
- Functionality: The DIN 3869 profile sealing rings ensure the axial-static sealing of threaded tube connections, fittings, and sealing screws with stud ends in connection with ports.
- Performance: By tightening the screw connection, the elastomer profile sealing ring compacts, enhancing the sealing effect and preventing medium leakage, which maintains pressure and protects against contamination by dust and dirt.

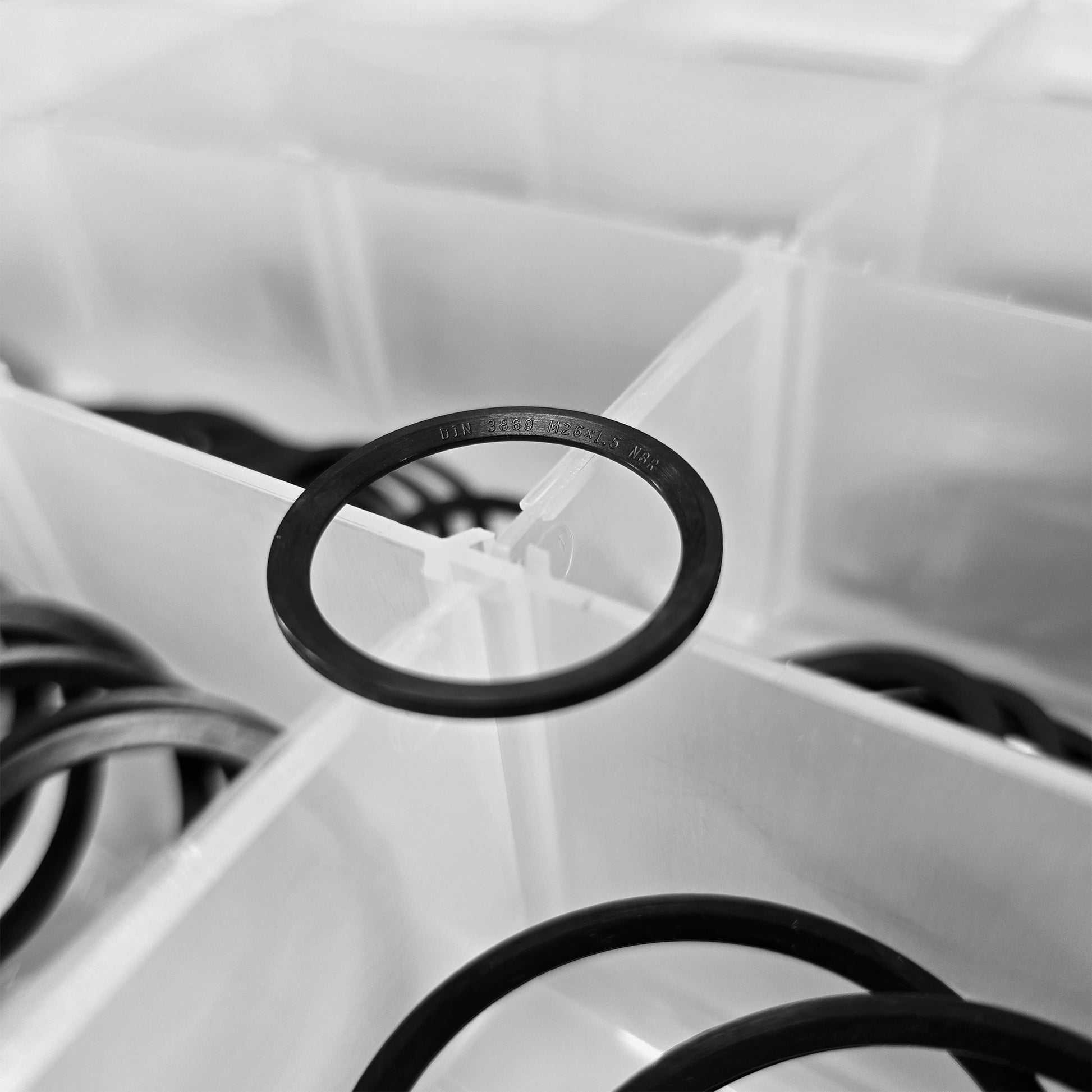

- Design Benefits: The seal’s geometry minimizes mechanical deformation and protects against twisting during installation.

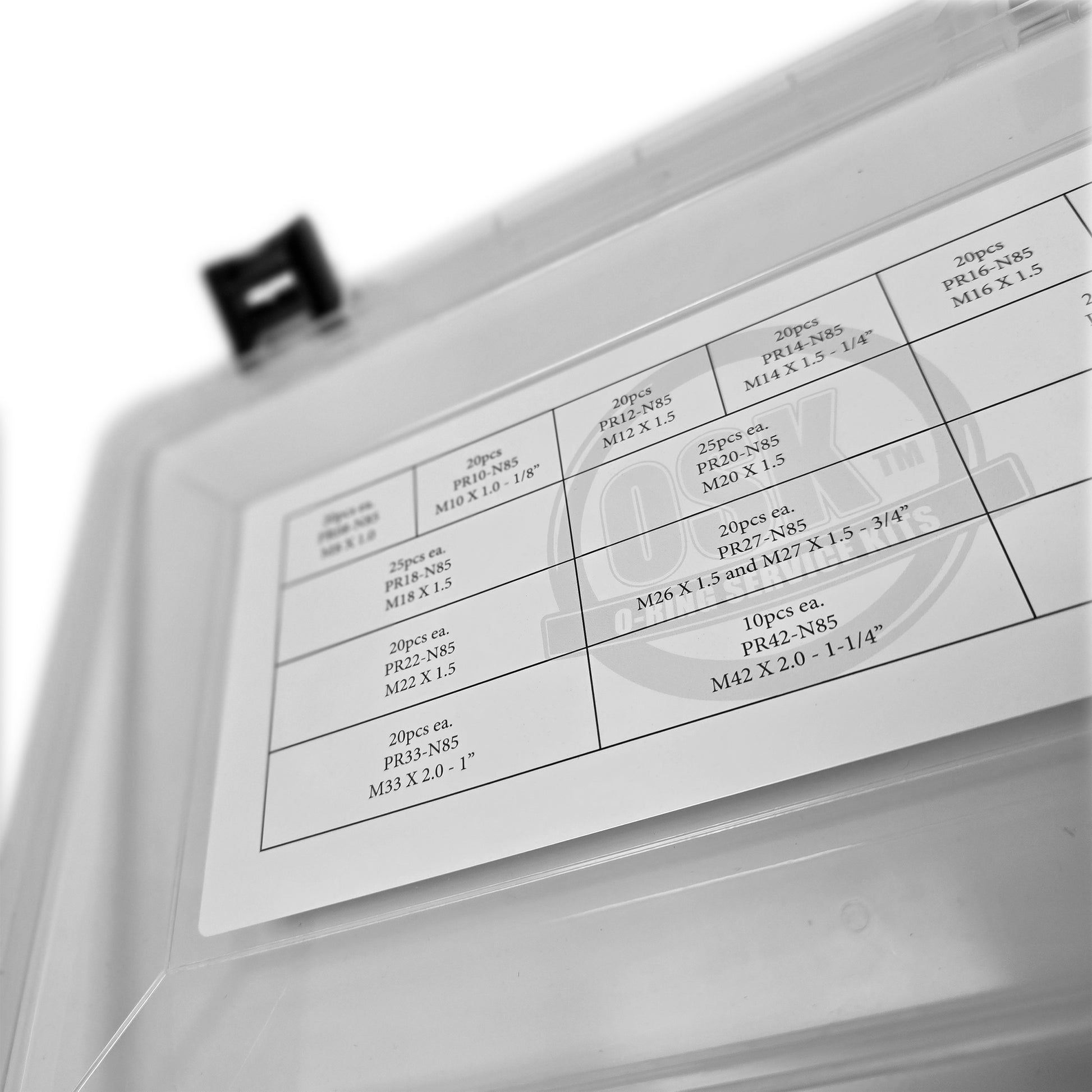

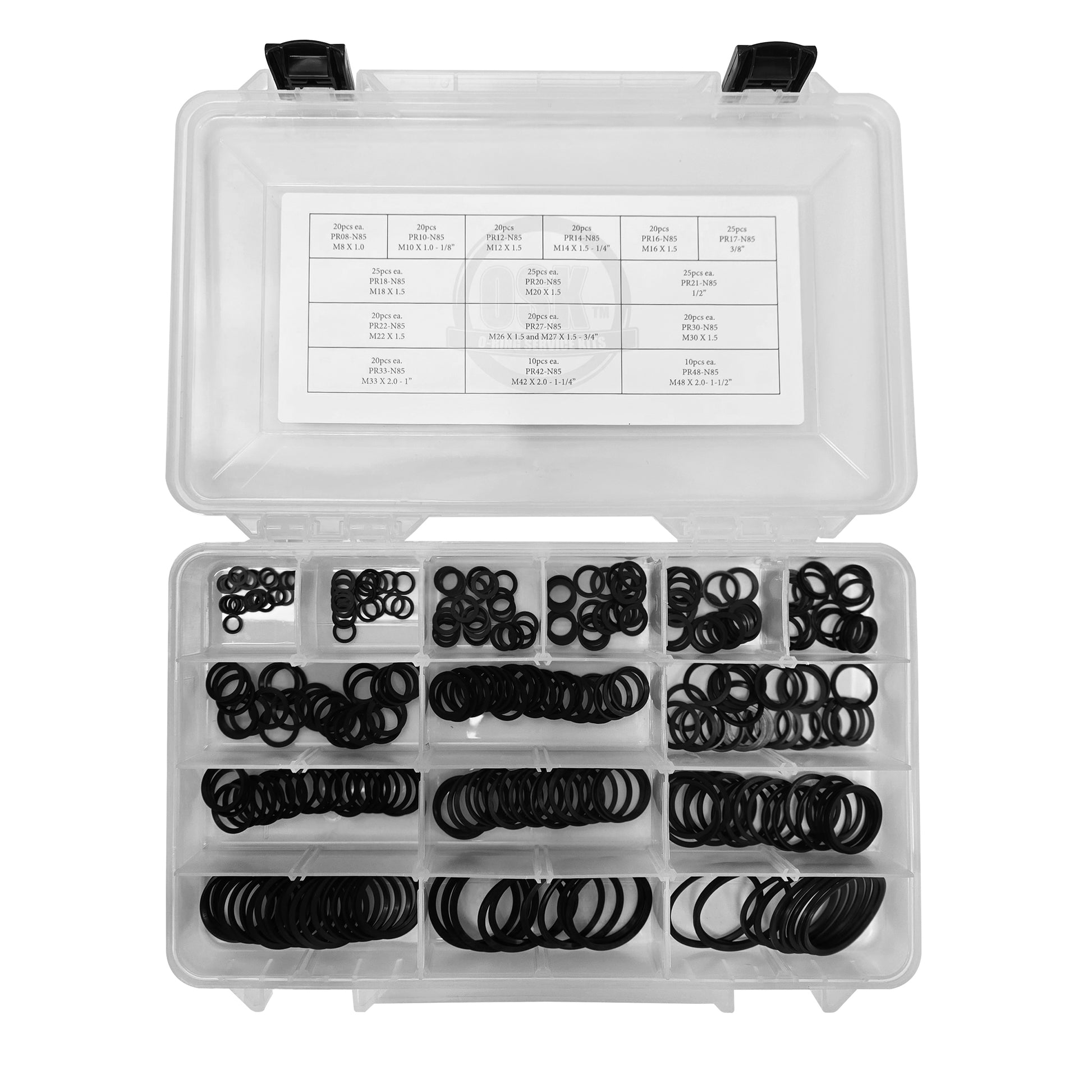

Kit Contents:
| Product Code | Inside Diameter (ID) | Outside Diameter (OD) | Height (H) | Quantity |
|---|---|---|---|---|
| PR08-N85 | 6.50mm | 9.90mm | 1.00mm | 20 |
| PR10-N85 | 8.40mm | 11.90mm | 1.00mm | 20 |
| PR12-N85 | 9.80mm | 14.10mm | 1.20mm | 20 |
| PR14-N85 | 11.60mm | 16.50mm | 1.50mm | 20 |
| PR16-N85 | 13.50mm | 18.50mm | 1.50mm | 20 |
| PR17-N85 | 14.40mm | 19.80mm | 1.50mm | 25 |
| PR18-N85 | 15.60mm | 21.00mm | 1.50mm | 25 |
| PR20-N85 | 17.50mm | 23.00mm | 1.50mm | 25 |
| PR21-N85 | 18.80mm | 24.50mm | 1.50mm | 25 |
| PR22-N85 | 19.70mm | 25.80mm | 1.50mm | 20 |
| PR27-N85 | 24.80mm | 31.30mm | 2.00mm | 20 |
| PR30-N85 | 27.80mm | 34.80mm | 2.00mm | 20 |
| PR33-N85 | 29.70mm | 35.70mm | 2.00mm | 20 |
| PR42-N85 | 38.80mm | 45.80mm | 2.00mm | 10 |
| PR48-N85 | 44.30mm | 52.00mm | 2.00mm | 10 |
Why Choose OSK™ DIN 3869 Kit?
The OSK™ DIN 3869 Fluid Connector / Profile Seal O-Ring Kit is perfect for engineers and maintenance professionals who need reliable sealing solutions. The kit’s design prevents common sealing issues, such as twisting, while offering a wide range of sizes for different requirements. Made from durable nitrile, these seals provide longevity and performance, making them ideal for various industrial applications.
Applications:
- Hydraulic and pneumatic systems
- Fluid power applications
- Static sealing in machinery and equipment
Upgrade your sealing solutions with the OSK™ DIN 3869 Fluid Connector / Profile Seal O-Ring Kit and experience the quality and reliability that The O-Ring Store LLC is known for.
